IBA Cyclone 18/9 Spare Parts

What we offer!

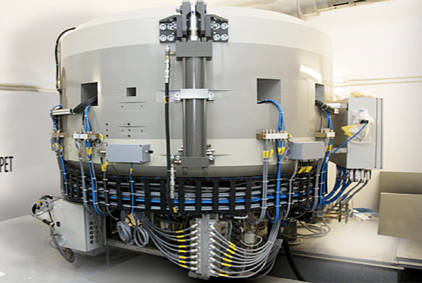

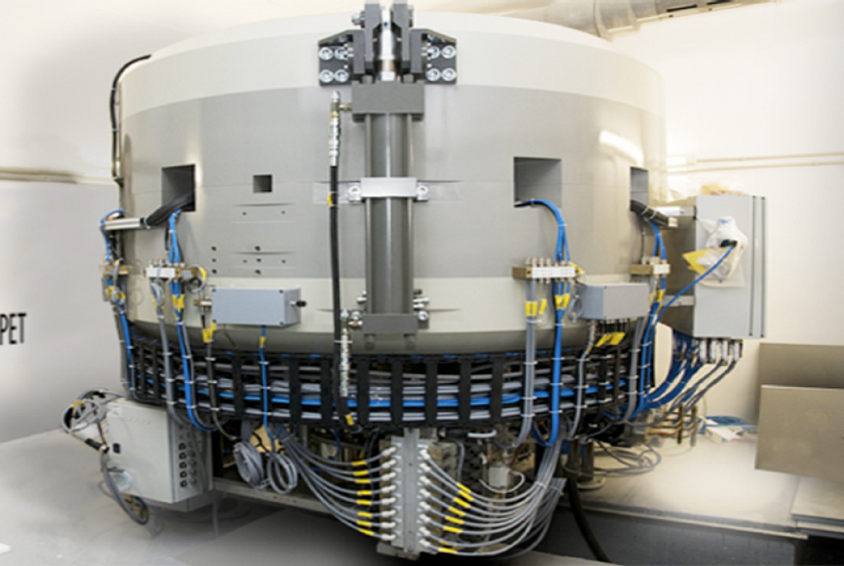

IBA Cyclone 18/9 Cyclotron

NME Engineering supplies reliable and cost-effective spare parts for IBA Cyclone 18/9 cyclotrons to support safe, stable, and uninterrupted isotope production.

Our focus is to help cyclotron facilities reduce spare part costs without compromising operational reliability. We provide selected high-demand components and consumables for routine maintenance, preventive replacement, and urgent spare part needs.

Each quotation is prepared according to the customer’s requested part numbers, quantities, technical requirements, and expected delivery schedule. Where applicable, we can also support customers with technical clarification, material selection, and documentation to ensure the correct part is supplied for the intended application.

We aim to deliver the best value through:

Reliable spare part supply
Competitive pricing
Fast worldwide shipment
Engineering-based technical support
Customer-specific quotations
Quantity-based discount options

Please contact us with your required IBA part numbers, quantities, and delivery location. Our team will review your request and provide a clear quotation with price, lead time, and shipping options.

IBA part numbers and model references are used only for compatibility identification purposes.

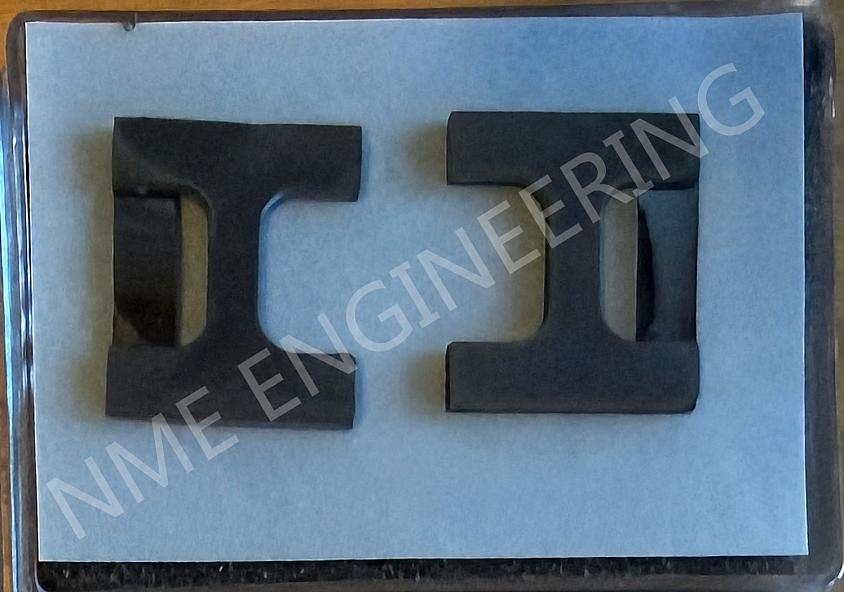

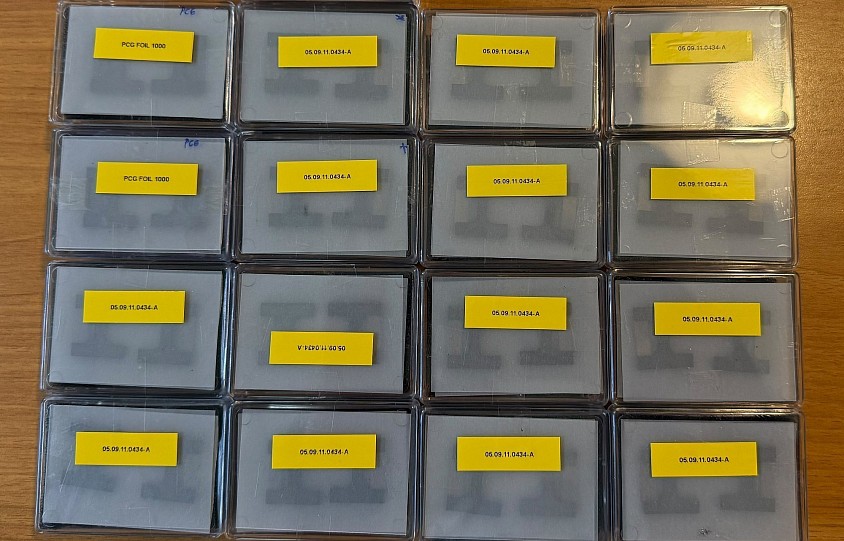

05.09.11.0434-A │ ind. Strip. Fork packed I form graphen

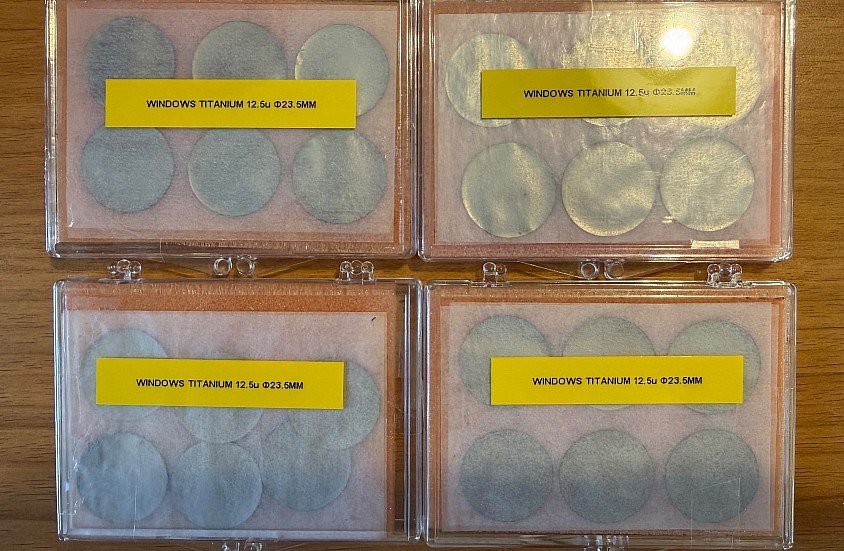

04.07.02.0008-B │ Windows titanium 12.5μ dia 23.5mm

IBA Cyclone 18/9 Spare Parts Supply List

2002444 Conical Insert 8,
2002440 Conical Insert 16,
05.09.86.0011-B Cathode,
05.09.86.0001-B H - chimney,
05.09.79.0014-C Puller C18/9 H-chimney big slot 1.5x7.5,
05.09.23.0004-J Cathodes(Ta)-C18/9, 11, 10/5 H- & D-,
05.09.23.0001-Q H-chimney-slot 0.45x6.5-height 44,
2002431 Windows havar 35μ dia 43mm,
04.07.02.0008-B Windows titanium 12.5μ dia 23.5mm,
05.09.11.0434-A ind. Strip. Fork packed I form graphen,
P4014907 Stripper 5µm V2.1 Cyclone Kiube,
72.05.05.0004 isolation valve- al - pv40pk - bellow,
72.02.04.0001 Vacuum gauge pirani TPR 010 - dn 10 iso,
IDX-1520 Tub FEP Nat 1/16*30*1000 ft,
1000494 O-ring 22.1 x 1.6 Kalrez 4079,
48.99.13.0052 O-ring 27.3 x 2.4 Viton,
1000495 O-ring 15.55 x 2.62 - Viton,
48.01.90.0020 O-ring 19.0 x 2.0 nitrile,
1000647 O-ring 18.0 x 1.0 Viton® 51414,
51.07.06.0025 Din 912 - m6 x 25 stainless screws,
04.07.15.0004-F Window spacer dia.10mm - with indexing,
74.01.07.0008 Vespel rotor seal for 7030 RV rheodyne 3,
63.02.01.0021 Tetrode EIMAC 4CX10000D/8171,
76.01.09.0004 Vacuum grease apiezon m type,
76.01.08.0007 Loctite bottle 577(glue),
72.02.04.0002 Vacuum gauge penning ikr 050 - dn 40 is,
72.04.02.0020 Heater resistor 230/250v 0.35 kw,
72.04.02.0021 Heater resistor 230/250v-1kw for160/700,
72.04.02.0029 Drain and filler plug O-ring (bag=5pcs),
76.03.02.0005 BOC L9 diffusion pump fluid (oil) 1 lit,
76.03.02.0014 Oil for rotary pump 1L rv e2m2 to e2m275,
05.09.03.0051-B C18/9 vacu cham. o-ring (low or up side),
05.09.03.0050-B C18/9 vacu cham. o-ring (media plane),
63.07.05.0021 Pressure transducer 0/+ 70 bar absolute,
73.05.06.0639 One-piece fittings natural color,
73.05.06.0641 One-piece fittings yellow color,
73.05.06.0642 Rheflex 1-piece fitting+chromtrac blu,
73.05.06.0643 One-piece fittings red Finger tight,
47.01.01.0007 Polyamid tube ID=4mm OD=6mm natural,
47.01.07.0016 Polyamid tube ID=10mm OD=12mm natural,
47.02.02.0001 Tube urethan 1/8" od 1/16" id,
47.05.01.0002 SST tube OD=1/8" ID=1.7mm seamless,
47.05.01.0019 SST tube OD=1/16" ID=0.5mm welded,
47.15.01.0002 Tube peek OD=1/16" ID=0.5mm (2m),
47.21.02.0003 Polyurethane tube ID=4mm OD=6mm blue,
47.21.02.0005 Polyurethane tube ID=5.5mm OD=8mm blue,
47.21.07.0001 Polyurethane tube ID=4mm OD=6mm natural,
47.21.07.0003 Polyurethan tube ID=5.5mm OD=8mm natural,
47.02.01.0001 Tube to OD=1/16" ID=0.8mm PTFE,
47.26.01.0001 Tube Tefzel OD=1/16" ID=0 .020",
47.26.01.0003 Tube Tefzel OD=1/16" ID=0.030",
48.00.76.0024 O-ring 7.6 x 2.4 - nitrile,
48.00.96.0024 O-ring 9.6 x 2.4 - nitrile,
48.01.36.0024 O-ring 13.6 x 2.4 - nitrile,
48.01.66.0024 O-ring 16.6 x 2.4 - nitrile,
48.01.86.0024 O-ring 18.6 x 2.4 - nitrile,
48.01.90.0020 O-ring 19.0 x 2.0 - nitrile,
48.01.96.0024 O-ring 19,6 x 2,4 - nitrile,
48.02.19.0026 O-ring 21.90 x 2.62 nitrile,
48.03.45.0030 O-ring 34.50 x 3.00 nitril,
48.03.76.0024 O-ring 37.6 x 2.4 - nitrile,
48.04.16.0024 O-ring 41.6 x 2.4 - nitrile,
48.04.76.0024 O-ring 47.6 x 2.4 - nitrile,
48.04.96.0024 O-ring 49.6 x 2.4 - nitrile,
48.05.45.0030 O-ring 54.5 x 3.0 - nitrile,
48.06.46.0024 O-ring 64.6 x 2.4 - nitrile,
48.98.01.0007 O-ring 26.6 x 2.6 - EPDM,
48.99.13.0017 O-ring 37.6 x 2.4 - Viton,
48.99.13.0058 O-ring 22.1 x 1.6 - Viton,
48.99.13.0059 O-ring 2.5 x 1.0 - Viton,
48.99.13.0061 O-ring 18.3 x 2.4 - Viton,
48.99.13.0100 O-ring 47.6 x 2.4 - Viton,
48.99.13.0103 O-ring 26.65 x 2.62 Viton,
49.04.01.0001 O-ring Silicone 18x22x0.7/0.8 mm,
51.02.02.0004 DIN 84 M2x4 Stainless,
51.02.25.0005 DIN 84 M2.5x5 Stainless,
51.07.03.0006 DIN 912 M3x6 Stainless,
51.07.03.0008 DIN 912 M3x8 Stainless,
51.07.03.0012 DIN 912 M3x12 Stainless,
51.07.03.0016 DIN 912 M3x16 Stainless,
51.07.04.0008 DIN 912 M4x8 Stainless,
51.07.04.0016 DIN 912 M4x16 Stainless,
51.07.05.0020 DIN 912 M5x20 Stainless,
51.08.03.0008 DIN 913 M3x8 stainless steel A4,
51.13.04.0001 DIN 934 M4 Stainless,
72.01.08.0016 Centring ring alu NW 16 + o-ring viton,
72.01.08.0017 Centring ring alu nw 25 + o-ring -viton,
72.01.08.0018 Centring ring alu nw 40 + o-ring -viton,
74.01.08.0021 8 pos valve model C5H / pneu. actuator,
73.03.03.0126 4-way solenoid air valve 24 VDC CE,
48.04.16.0024 O-ring 41.6 x 2.4 - nitrile,
62.02.01.0755 Fuse 100mA 5*20 anti surge T time delay,
62.02.01.0396 Fuse 0.8A 250Vac size 5x20 mm quick blow,
62.02.01.0387 Fuse 1.6 amp size 5x20 semi-delay,
62.02.01.0031 fuse 160mA size 5x20 (T) delay,
62.02.01.0020 Fast fuse 1.6 Amp in glass size 5x20,
62.02.01.0610 Fuse 1amp size 5x20mm quick acting,
74.01.03.0003 Cheminert ferrules.col 1/16",
80.12.02.0016 Cheminert nut 1/4"-28 for 1/16"OD tubing,
73.05.06.0317 Set of ten 1-piece fitting 1/16 multicol,
75.03.01.0020 Regenerated resin in package of 25 L,
47.19.01.0015 Push-on rubber hose ID=1/2" grey,
74.12.05.0001 Coupling 1/4" BSPP male viton seal SST,
74.12.05.0005 Connector ID=6mm hose barb SST,
73.05.06.0186 Liquid leak detector 23.6 ml,
05.09.86.0403-A Cathode H.V.connection assembly,
